What Size Furnace Do You Need in Manassas, VA?

Heating The Leonard Splaine Team October 6, 2026

Flat illustration of a small, a medium and a large gas furnace standing side by side on a blue background with white snowflakes, the medium furnace outlined in a pale blue glow, each with a metal flue pipe rising from its top

Are you having issues with a furnace replacement and stuck on the first question: what size furnace do I need in Manassas, VA? This article will help you figure that out. In this article we’re going to cover BTU ratings, the winter temperature a Manassas furnace is sized for, the Manual J, the 2,000 square foot question, what a wrong size does, matching the old furnace and permits. Let’s get into it.

The honest answer starts with your house, not your town. A furnace is matched to how much heat your home loses on a cold design night, and a load calculation works that out from the house itself. What Manassas adds is that cold night, and your address decides which local office permits the work. When you’re ready to replace yours, start with our furnace installation service.

What Does the BTU Rating on a Furnace Tell You?

How much heat the furnace can deliver in an hour, if you read the right number. A gas furnace’s size in BTUs (British thermal units) per hour can describe the fuel it burns or the heat it puts out.

Output is the number that heats your rooms

Input is always the bigger of the two numbers, but the capacity that matters is output: how quickly those BTUs go into your home. So when two quotes name two furnaces, compare output to output.

AFUE turns input into output

The link between the two is AFUE (annual fuel utilization efficiency), essentially the percent efficiency over the whole heating season. For example, a furnace rated for 60,000 BTU per hour of input at 80 AFUE supplies 48,000 BTU per hour of heat.

What Winter Temperature Is a Furnace Sized For in Manassas?

Not the coldest night on record. A furnace is sized for a design temperature, a cold mark only a small share of the year’s hours fall below, and for Manassas it sits at 16°F to 17°F.

A Manassas furnace is sized for a night near 16°F

The 99 percent heating design temperature is 16°F for the City of Manassas, the City of Manassas Park and Prince William County, based on weather data from Manassas Regional Airport. That figure comes from the ENERGY STAR Design Temperature Limit Reference Guide (revised September 2018), written for ENERGY STAR’s certified homes program. That’s four degrees colder than the guide’s 20°F for Arlington and the City of Alexandria, so a Manassas house faces a colder design night.

For homes in the county, the winter design temperature is 17°F in Prince William County’s own climatic and geographic design criteria (revised December 2020). The two figures serve different purposes, and neither is a furnace size.

The design temperature leaves out the rare coldest hours

The 99 percent winter design temperature is the outdoor temperature a location stays above for 99 percent of the hours in a year, based on a 30-year average, which leaves only about 88 colder hours a year.

Weighing a heat pump or mini split instead? Our post on whether a mini split can heat an Arlington home in winter explains how design temperature figures into those.

What Is a Manual J Load Calculation for a Furnace in Manassas?

It’s the calculation that works out how much heat your house loses on that design night, the heating load in BTUs per hour that a new furnace’s output is chosen to cover.

Manual J works from the house itself

A Manual J is the national standard for working out the heating and cooling load that sizes a home’s equipment. Quick estimates don’t account for variables like insulation, window quality, ceiling height and air leakage, while a Manual J considers everything from sun exposure and ductwork to insulation levels and local climate data, as furnace maker Bryant’s sizing guide puts it. For a Manassas home, that local climate data starts with a winter design temperature like the ones above.

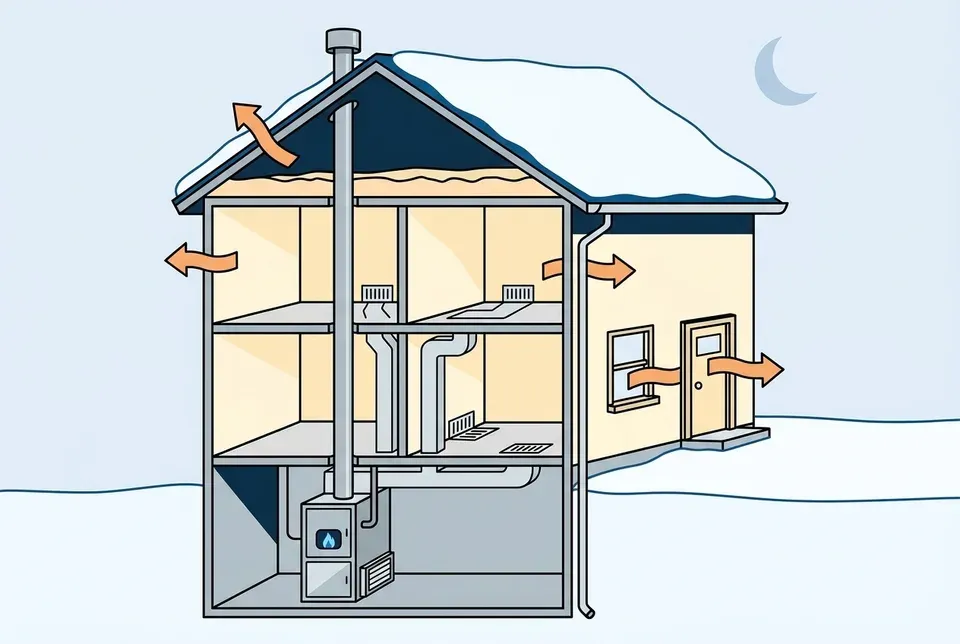

Flat illustration of a cutaway house on a snowy night under a crescent moon, with a gas furnace in the basement, a flue pipe rising through the roof, ducts running up to the rooms and orange arrows showing heat escaping through the attic, the walls, a window and the front door

Virginia’s residential code names Manual J too

Section M1401.3 of the 2021 Virginia Residential Code says heating and cooling equipment shall be sized with ACCA Manual S or another approved method, based on loads calculated with Manual J or another approved method, with listed exceptions such as multi-stage equipment whose published capacity range covers the load. The Virginia Department of Housing and Community Development says the 2021 statewide building code took effect January 18, 2024. Work on an existing house falls under Virginia’s separate 2021 Existing Building Code, so ask your permit office how the rule applies to a replacement.

How Many BTUs Does a Furnace Need for a 2,000 Square Foot House in Manassas?

More than square footage can tell you: for a 2,000 square foot house, the square-foot rule gives a range whose top is double its bottom.

The square-foot rule is only a starting point

A quick rule of thumb multiplies square footage by 30 to 60 BTU per square foot, so a 2,000 square foot home needs roughly 60,000 to 120,000 BTU, depending on insulation and climate. That quick calculation is a helpful starting point, but a professional load calculation is the best way to determine the right size.

Two Manassas houses the same size can need different furnaces

Say two 2,000 square foot houses sit on the same Manassas street, one with an insulated attic and newer windows, the other with neither. Both are sized against the same design night, but insulation and windows are among what a quick estimate misses, so the second house may need the bigger furnace. A load calculation on each house puts a number on the difference.

What size does to a new furnace’s price is a separate question from this one.

What Happens If Your Furnace Is Too Big or Too Small for a Manassas Winter?

Too big, and it runs in short bursts most of the winter. Too small, and it can fall behind in cold weather.

An oversized furnace short cycles through milder weather

An oversized furnace short cycles, turning on and off frequently, with uneven temperatures, poor humidity control, more wear on components and higher energy bills. A Manassas winter gives it plenty of chances. By the 99 percent definition above, the air outside stays above ENERGY STAR’s 16°F design temperature for all but about 88 hours of a typical year, and a home’s rate of heat loss depends on the temperature difference between inside and out. So a furnace that’s too big for the design night is even bigger than the house needs on an ordinary January day.

Short cycling is the same trouble an oversized air conditioner has in summer, which our post on why an AC short cycles in a Manassas home covers.

An undersized furnace struggles to keep up in the cold

An undersized furnace struggles to keep up in cold weather and can run constantly without reaching the set temperature. Even so, a furnace that’s too small is probably the less likely problem, and oversizing the more common mistake.

If a furnace that kept your house warm last winter can’t keep up now, size probably isn’t the reason. A failing heating system is one of the other reasons a house may not feel warm enough, and that’s a job for furnace repair.

Should a New Furnace in Manassas Be the Same Size as the Old One?

Not by default. Matching the old furnace is the easy path, but its size is a clue, not an answer.

A slightly bigger input rating can mean a much bigger output

For example, take the 60,000 BTU input furnace at 80 AFUE from above. Say the 95 AFUE model chosen to replace it comes in 46,000 or 69,000 BTU input sizes but not 60,000, so the installer picks the bigger one to keep the house from running short. In that swap, input rises 15 percent, but output rises 37 percent, from 48,000 to 65,550 BTU per hour. Installing the size you have now, or larger, is probably the least reliable way to size a new furnace.

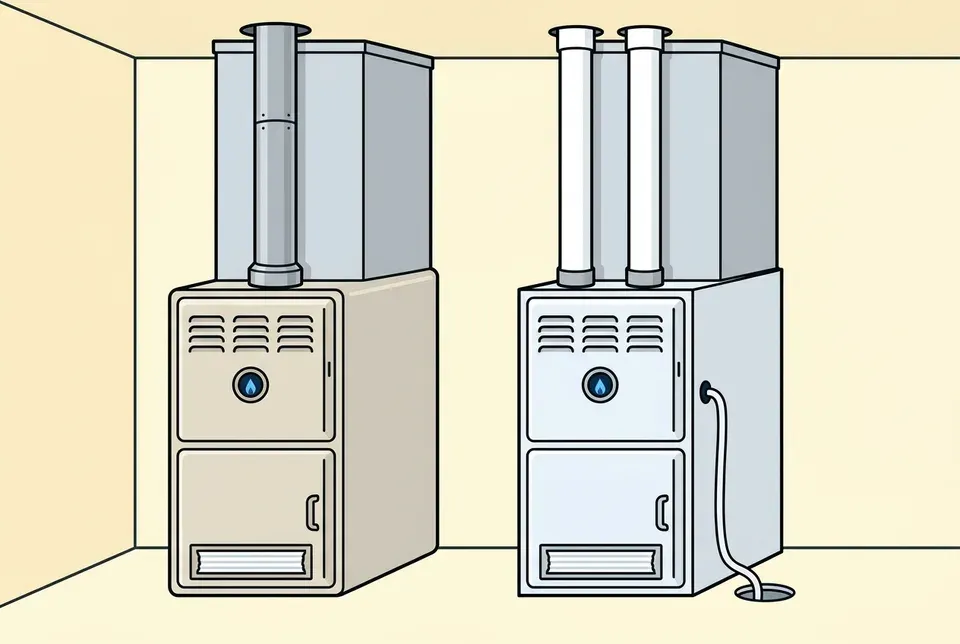

Flat illustration of an older beige gas furnace with a metal flue pipe beside a newer gray gas furnace with white plastic vent pipes and a condensate tube running to a floor drain, both the same height in a basement corner

The old furnace may have been too big already

An old furnace can be bigger than its house needs, and a furnace copied from an oversized old one copies the mistake. So ask each company that bids how it plans to size the new furnace. A Manual J load calculation is one acceptable answer.

Prince William County’s fast path assumes the same size

For homes in Prince William County, the county’s guidelines for replacing mechanical equipment without building plan review (version dated March 22, 2019, still listed among its customer handouts) call for new equipment with the same fuel source and the same capacity as the equipment it replaces. A furnace sized up or down after a load calculation falls outside that path, so ask whoever pulls the permit whether the change needs a plan review.

Do You Need a Permit to Replace a Furnace in Manassas?

For a gas furnace, yes. Around Manassas, three local governments issue permits, the City of Manassas, the City of Manassas Park and Prince William County, so the office depends on which one your home is in.

Prince William County requires one for gas or oil furnaces

Prince William County’s “Do I Need a Permit?” page for residential projects lists replacing gas or oil furnaces among the work that always requires a permit. Replacing an electric furnace with the same type of unit in the same location is on its list of work that doesn’t, though that work must still meet code requirements.

The two cities draw a similar gas and electric line

In its 2025 version, the City of Manassas’s mechanical permit page lists replacing gas furnaces among the work that needs a mechanical permit, and the City’s 2025 no-permit list includes replacing mechanical appliances not fueled by gas or oil in houses and townhouses. The City of Manassas Park’s 2025 permit page lists replacing gas appliances as permit work, and replacing an electric furnace with the same size unit in the same location as work that doesn’t need one. For example, a different-size electric furnace in Manassas Park doesn’t fit that line, so confirm the current rules with the office for your address before work starts.

The Bottom Line

When two quotes name two furnaces, compare output to output.
ENERGY STAR’s design temperature guide, written for its certified homes program, lists a 99 percent heating design temperature of 16°F for the City of Manassas, the City of Manassas Park and Prince William County, and Prince William County’s own criteria give a winter design temperature of 17°F for homes in the county.
A Manual J load calculation works out your house’s heating load, and the square-foot rule is only a starting point. The old furnace’s size is a clue, not an answer.
A gas furnace replacement is permit work in Prince William County and, in their 2025 permit pages, in both cities, so the office depends on which of the three your home is in.

Bring three questions to every quote: what heating load the calculation found, which design temperature it used, and what the proposed furnace puts out rather than what it burns. If you’d like one more quote to set beside the others, our replacement estimates are free, and you can learn more about our family-owned company, founded in 1956, before you call.
