What Does A2L Refrigerant Mean for a Springfield AC Replacement?
Are you having issues with A2L refrigerant in Springfield, VA, and what it means for the AC you’re about to replace? This article will help you figure that out. In this article we’re going to cover what A2L means, how it relates to R-454B and R-32, whether a new outdoor unit can use your old indoor coil, what Fairfax County requires on an A2L install, how flammable these refrigerants are, and what to ask your installer. Let’s get into it.
Here’s what it means for your house. A new AC is likely to run on an A2L refrigerant such as R-454B or R-32, its outdoor unit has to be paired with an indoor coil approved to work with it, and in Fairfax County the install comes with a certification, a pressure test and a label. When you’re ready to price a new system for your home, start with our AC installation and replacement service.
What Is A2L Refrigerant, and Why Are New Springfield ACs Moving to It?
A2L is a safety rating, not a brand or a single refrigerant. New ACs for Springfield homes are moving to refrigerants that carry it because those refrigerants meet a federal climate limit that R-410A doesn’t.
The rating covers toxicity and flammability
The refrigerant in your AC carries one of ASHRAE’s safety classifications, which rate refrigerants for toxicity and flammability. In A2L, the A stands for lower toxicity and the 2L for lower flammability, and refrigerants in the class also have a low burning velocity, so a flame spreads through them slowly.
A federal climate limit is behind the change
A new home AC or heat pump system has to meet EPA’s global warming potential limit of 700. On EPA’s list of refrigerants for home AC and heat pump systems, R-410A rates 2,090, far above that limit, while R-454B rates 470.
A system whose key parts were all made or imported before the limit took effect can still be installed, so a quote for your Springfield home could still list R-410A, and our post on how long a heat pump should last in a Manassas home covers the rule’s dates and why a working R-410A system can stay.
Is A2L the Same as R-454B or R-32 in a Springfield Home?
No. A2L is the class, and R-454B and R-32 are two refrigerants in it. Both appear with an A2L rating on EPA’s list of acceptable refrigerants for new home AC and heat pump equipment, and EPA accepts both only with conditions on their use.
The equipment decides which one you get
Which A2L refrigerant ends up in your Springfield home depends on who made the system and what kind of system it is. For example, Lennox uses R-454B in its whole-home systems and R-32 in its ductless mini-splits, while the new line of Mitsubishi Electric products announced in June 2024 uses R-454B. A good quote names the refrigerant, so ask if yours doesn’t.
R-410A sits in a different class
R-410A isn’t an A2L refrigerant. It’s rated A1 on that same EPA list, a different safety class that the flammability section below explains. So if a quote lists R-410A, it’s offering equipment made before the switch, which can still be installed, rather than an A2L system.

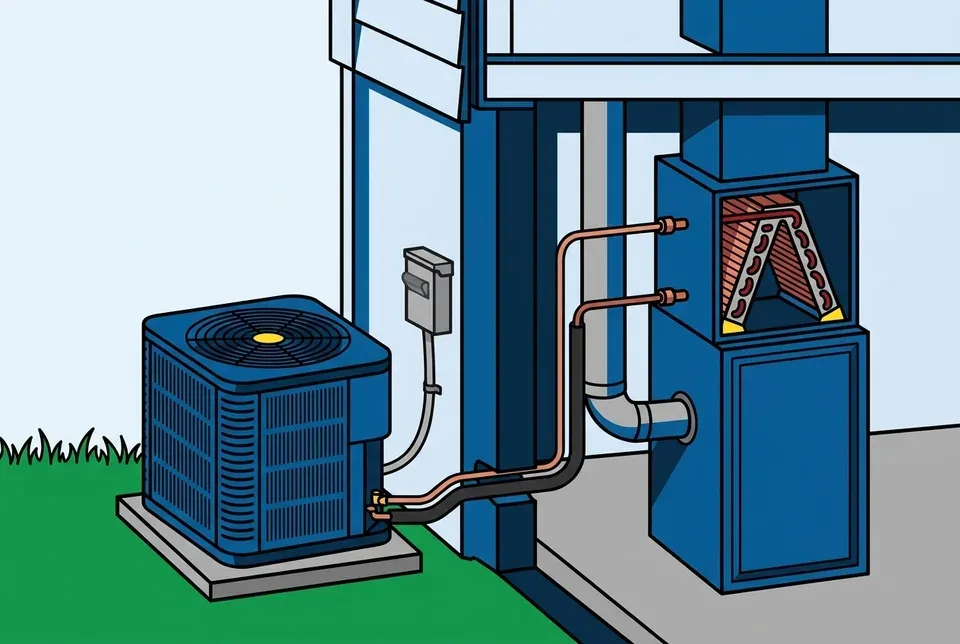

Can a New A2L Outdoor Unit Run on Your Old Indoor Coil in Springfield?
Only if that coil is approved for the new refrigerant and the new outdoor unit. A mildly flammable refrigerant such as R-454B or R-32 isn’t allowed in a system that wasn’t designed for it, under EPA’s refrigerant program and industry standards, so the real question is whether your coil was designed for it.
The outdoor unit’s instructions set the coil rule
For example, the Merit ML17KC2, an R-454B air conditioner, is designed for R-454B only and must be installed with an approved indoor air handler or coil, per its installation instructions, which point to AHRI-certified system match-ups. Your installer should be able to show you that your coil, or the new one in the quote, is an approved match.
Ask for that match-up by number. AHRI certifies a split system as a pair, listing the indoor and outdoor units together, and each certified combination gets its own reference number. If your old coil and the new outdoor unit don’t show up as a certified pair, ask why before you sign.
Replacing both halves makes it a new system
Replacing the outdoor condensing unit and the indoor coil together counts as a new system under EPA’s refrigerant transition rules, even if the refrigerant lines stay. Swapping only one of them for a similar R-410A part is a repair, so a failed coil on a working R-410A system can still get an R-410A coil. Our guide to replacing the evaporator coil or the whole AC helps you weigh that choice.
What Does Fairfax County Require When an A2L AC Is Installed in Springfield?
Four items on top of the permit: a timed pressure test, a label on the unit, a test of the refrigerant detection system if the system has one, and an A2L certification that vouches for the work. Fairfax County Land Development Services set out the test, label and detection system rules for one- and two-family homes in Technical Bulletin 25-04, issued May 14, 2025, and its permit pages add the certification.
A permit is required for any new A2L installation
Any new installation of equipment that uses A2L refrigerants requires a permit under the bulletin, and replacing an HVAC system is also on the County’s list of permit work. The bulletin’s rules for those installs start with the basics: the equipment has to go in by the manufacturer’s installation instructions, and those instructions have to be on site. That puts the approved-coil pairing from the section above inside what the County expects.
Each A2L install comes with these items
- A pressure test. The refrigerant piping is tested for at least 60 minutes at 450 PSI with oxygen-free nitrogen, helium or argon, and the contractor self-certifies the test before the final inspection. It’s the County’s rule for a new A2L install, and a different job from tracking down a leak, which our post on finding a refrigerant leak in Fairfax covers.
- A label. The installed unit must be labeled with the installer’s contact information, the system’s refrigerant charge and the refrigerant number.
- A detection system test, where there is one. A system with a refrigerant detection system must have it tested to the UL 60335-2-40 standard before the final mechanical inspection, and the contractor self-certifies that it was installed properly.
- The A2L certification. The County requires an A2L Refrigeration System Certification for every installation of heating and cooling appliances that use A2L refrigerants for comfort in one- and two-family homes, and the certification form is where the contractor certifies the pressure test and the detection system.
Townhouse owners should ask the County first
The bulletin and the certification are both written for one- and two-family homes, and neither says whether a townhouse counts. If you own a townhouse in Springfield, ask Land Development Services whether these A2L items apply to your home before the work starts.
How Flammable Is the A2L Refrigerant in a New Springfield AC?
Mildly. A2L refrigerants sit in the lower-flammability class. That’s one step up from R-410A’s class, whose refrigerants don’t spread a flame when tested, and below the classes for flammable and highly flammable refrigerants. That rating is the reason for the extra rules: Fairfax County’s A2L requirements are there to mitigate the risks that come with the refrigerants’ flammability classification.

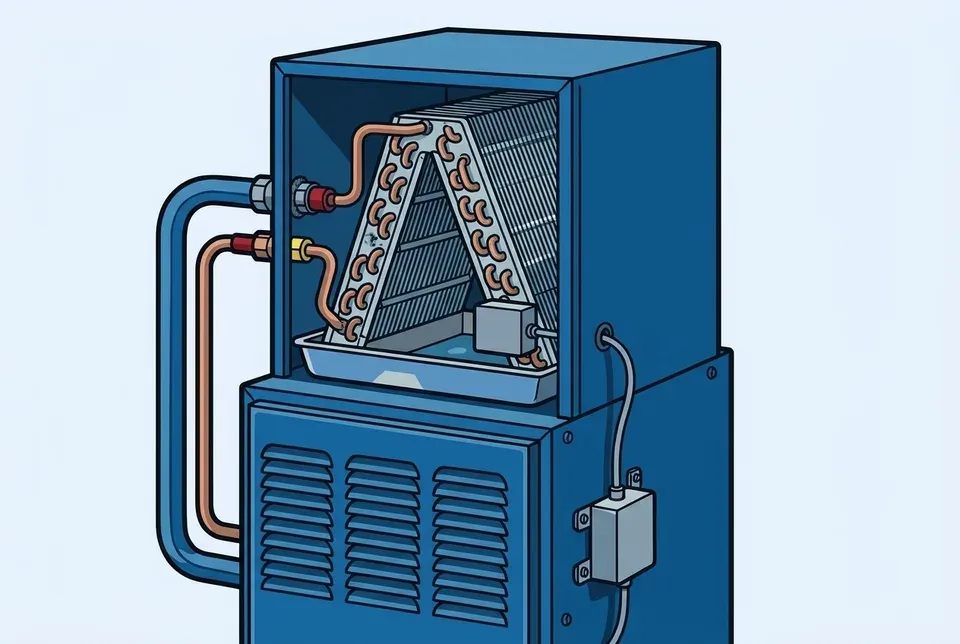

A detection system answers a leak on systems that have one
On a system that has one, the refrigerant detection system watches for leaking refrigerant, and if it finds a leak it can ventilate the equipment so the refrigerant doesn’t pool. It’s also the system the County wants tested before the final inspection, which is one more reason to know whether yours has one.
The County caps the refrigerant in a single system
Fairfax County limits a single A2L system in a one- or two-family home to 34.5 pounds of refrigerant, which puts a ceiling on how much any one system could ever release.
What Should You Ask a Springfield Installer About an A2L System?
Ask enough to know three things: the equipment is a certified match, Fairfax County’s A2L items are covered, and certified hands are doing the refrigerant work. These questions are fair to put to every installer, us included.
Start with the equipment
- Which refrigerant does this system use? It could be R-454B, R-32 or R-410A equipment made before the switch, and the quote should say which.
- Is my indoor coil approved for this outdoor unit, or does the quote replace it? Either way, ask for the AHRI reference number for the exact pair.
- Does this system have a refrigerant detection system? If it does, ask where the sensor sits and how it will be tested.
Then cover the County’s items and the crew
- Who pulls the Fairfax County permit, and who files the A2L certification? Get both answers in writing.
- Will you run the County’s pressure test and label the unit? Both are County requirements on an A2L install.
- Is someone on the crew certified to buy refrigerant? Only Section 608 certified technicians can buy refrigerant for stationary air conditioning like a home AC.
We’d rather you ask than guess, and you can read about how our family business has worked since 1956 before you call.
What to Do Next
Before you sign for a new AC in your Springfield home, work through this list:
- Check which refrigerant each quote uses: R-454B, R-32 or R-410A equipment made before the switch.
- Ask whether your indoor coil is approved for the new outdoor unit, and get the AHRI reference number for the pair.
- Confirm who pulls the Fairfax County permit, and that the job includes the A2L certification, the pressure test, the label and, if the system has one, the detection system test.
- If you own a townhouse, ask Land Development Services whether the A2L items apply to your home.
- For what a new system costs, see our guide to what a new AC system costs in Northern Virginia.
