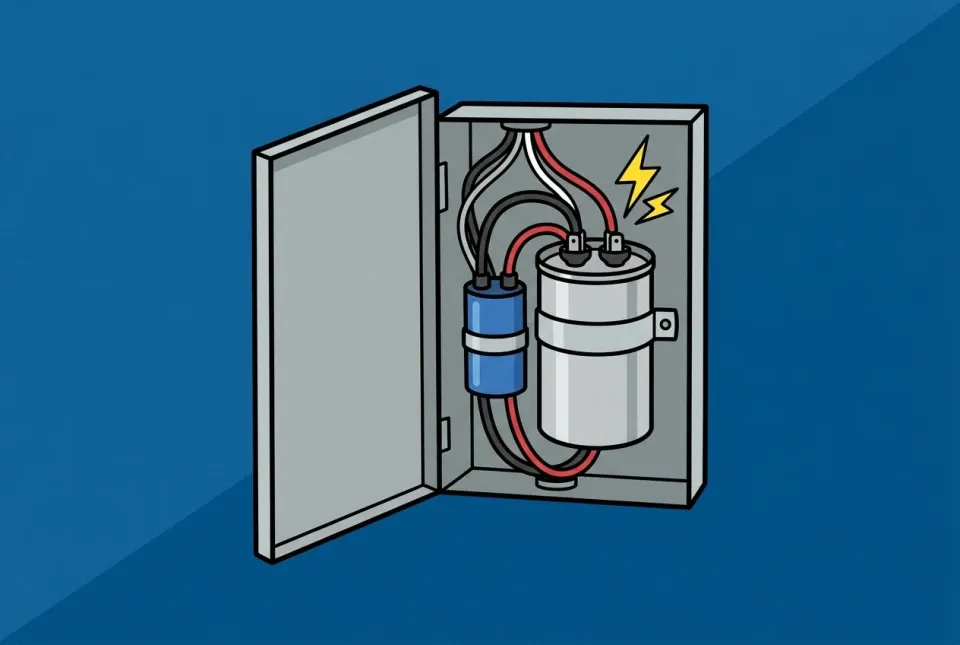

Illustration of a hard start kit wired to an AC run capacitor

Quick answer

A hard start kit is a small add-on (a start capacitor plus a relay) that gives your AC compressor a stronger electrical jolt so it starts fast and clean instead of straining. It helps because starting a compressor draws 4 to 8 times more current than running it, and that startup surge is hard on an aging compressor. A hard start kit is a genuine fix when a healthy compressor is starting to struggle. On a compressor that’s actually dying, it buys time, not a cure.

Here’s how to tell which situation you’re in.

What a hard start kit actually does

Every time your AC kicks on, the compressor, the heart of the system, has to overcome inertia and get moving. That first split second draws a big spike of amperage, and that spike creates heat. Heat is what wears out electrical parts over time.

A hard start kit shortens that spike. It stores extra energy and releases it the instant the compressor tries to start, so the motor snaps into its running state in a fraction of the time. Less time spiking means less heat, less strain, and a compressor that starts reliably even under tough conditions like low voltage or high head pressure on a brutally hot day.

Signs your AC might be hard starting

“Hard starting” is when the compressor struggles to get going. The telltale signs:

The unit stutters or clicks when it tries to start, then shuts off quickly (short-cycling).
Your lights flicker or dim noticeably each time the AC kicks on.
The compressor hums but won’t start, or trips the breaker on startup.
The system starts hard on low or inconsistent voltage, common with long refrigerant line sets in multi-story homes, or when you’re running a generator.

A gentle flicker when a big appliance starts is normal. A dramatic dip, a stutter, or a breaker trip is not.

Two scenarios where a hard start kit makes sense

Scenario 1: Your AC is already hard starting

If you’re seeing the signs above, get a technician out to find out why. A hard start kit is often the right answer, but only after a pro confirms the compressor is fundamentally sound and just needs help starting.

The honest caveat: if your compressor is near the end of its life, a hard start kit is a stopgap. It may squeeze out another season, but it won’t save a failing compressor. When a compressor is truly on its way out, replacing the whole system is usually smarter than sinking money into an expensive compressor swap on old equipment. A good tech will tell you which camp you’re in instead of just slapping on a kit and moving on.

Scenario 2: You want to protect a healthy AC

Older single-phase units often shipped with a hard start device built in. Many newer models don’t. If your compressor is in good shape, adding a kit can extend its life, ease the startup strain, and help it start dependably during voltage sags. It’s worth considering if you run a whole-home generator, have long line sets, or your street sees brownouts in peak summer.

What it costs

Typical cost: $100 – $250 installed. It’s an inexpensive part and a quick job for a technician. Compared to a compressor, the single most expensive component in your system, it’s cheap insurance when it’s the right fix.

What a hard start kit is not

It’s not a cure-all. If your AC is short-cycling or tripping breakers, the real cause might be a bad capacitor, low refrigerant, a failing contactor, or a compressor at the end of its road. A hard start kit masks some of those symptoms without fixing them. That’s exactly why the right move is a diagnosis first, part second, not the other way around.

When to call a pro

Compressor and startup problems aren’t DIY territory. This is line-voltage electrical work wired directly into your most expensive component, and the wrong kit or a sloppy install can do real damage. If your AC stutters, clicks, dims your lights, or trips the breaker when it starts, have a technician diagnose it and tell you honestly whether a hard start kit solves the problem or just delays a bigger decision.
